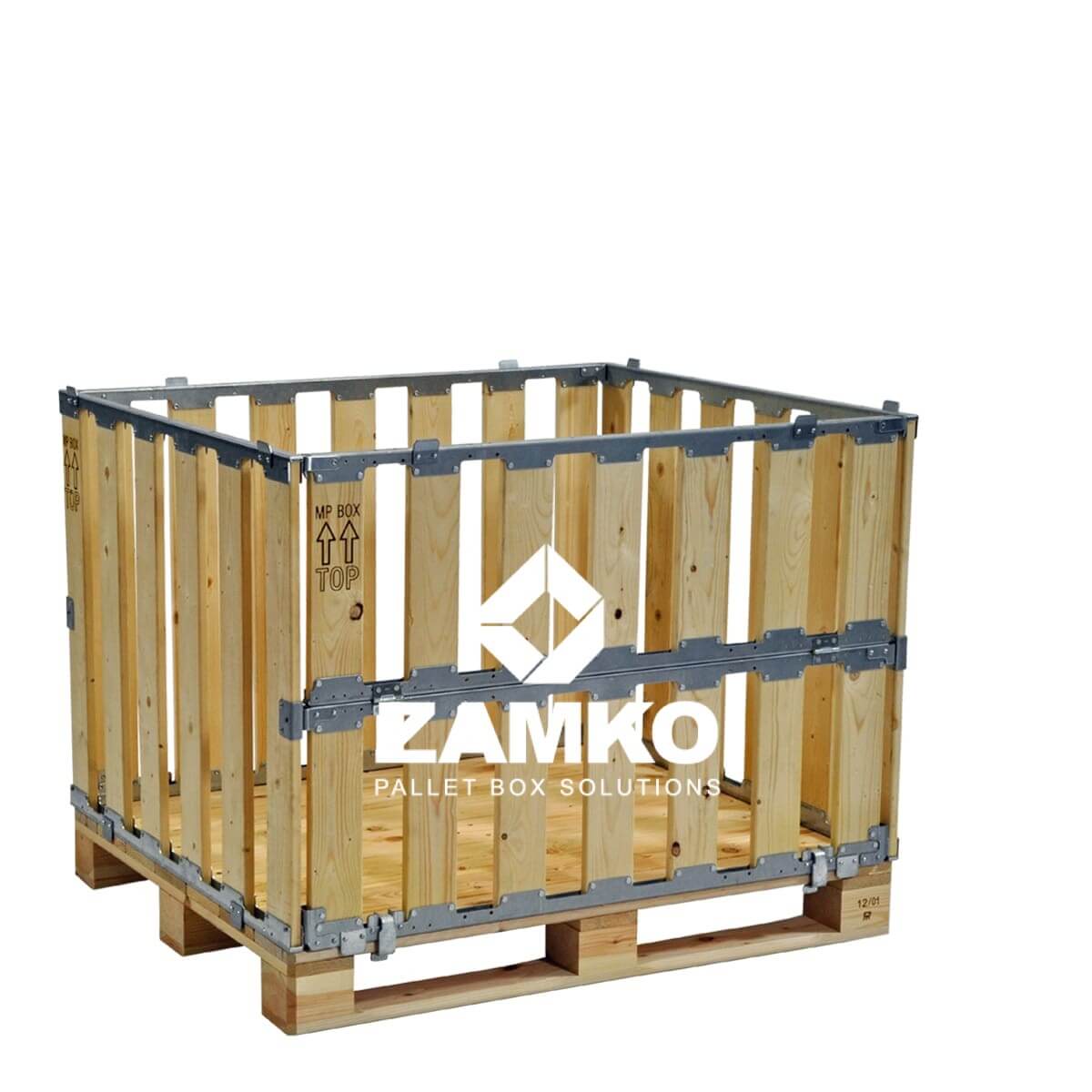

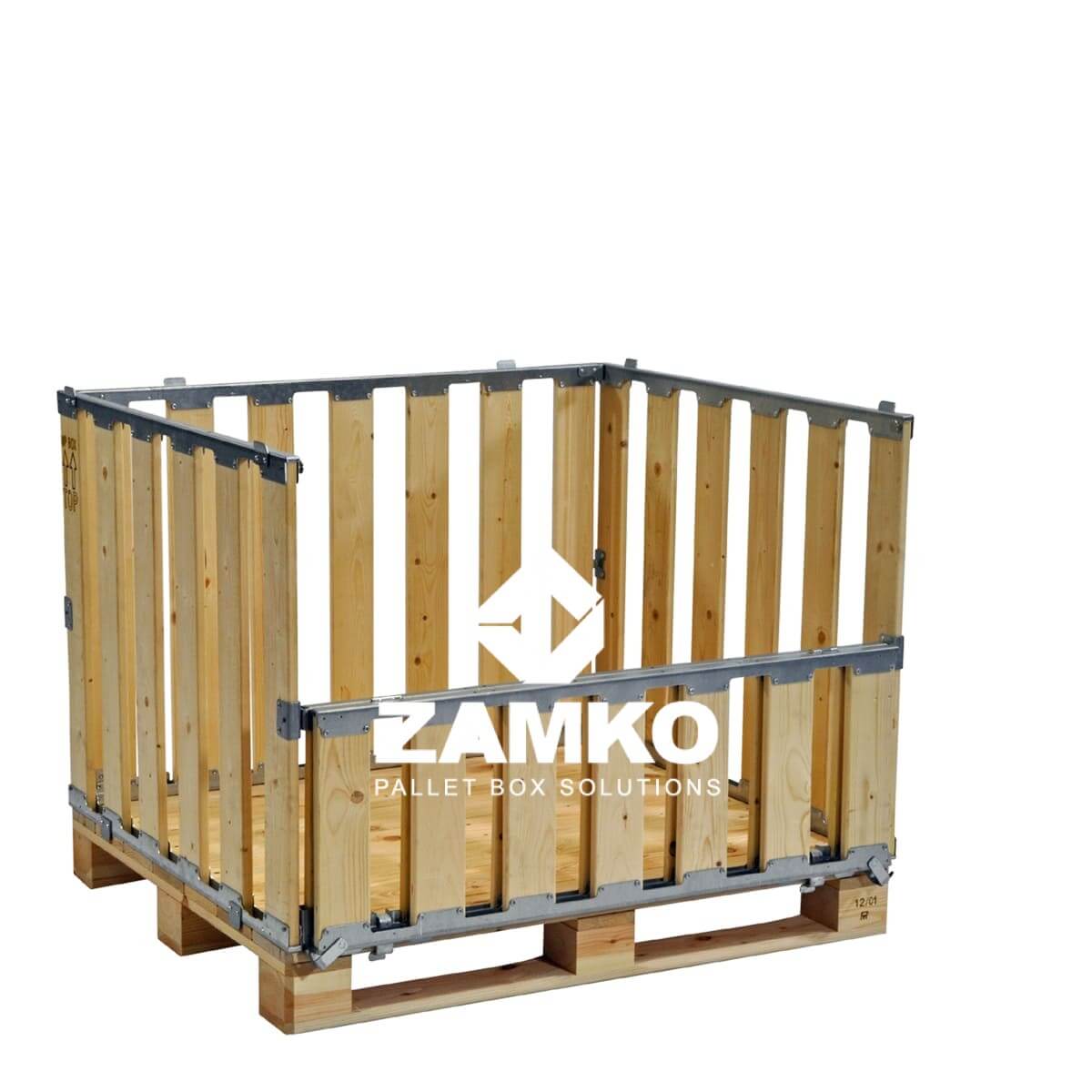

Pallet Box -4 detachable walls incl. 1 hinged gate

Holz Palettenboxen SKU: MPB.b80.F 1000x1200xH800 mm Collapsible Stackable
Ground size (mm): 1000x1200
External dimension (mm): 1000x1200xH800
Interior dimensions (mm): 950x1150xH800
Interior volume (m3): -
Height when folded (mm): 125
Weight (kg): 36
Wall thickness (mm): 25
Load capacity (kg): 1000
Stacking (Static) 1+4

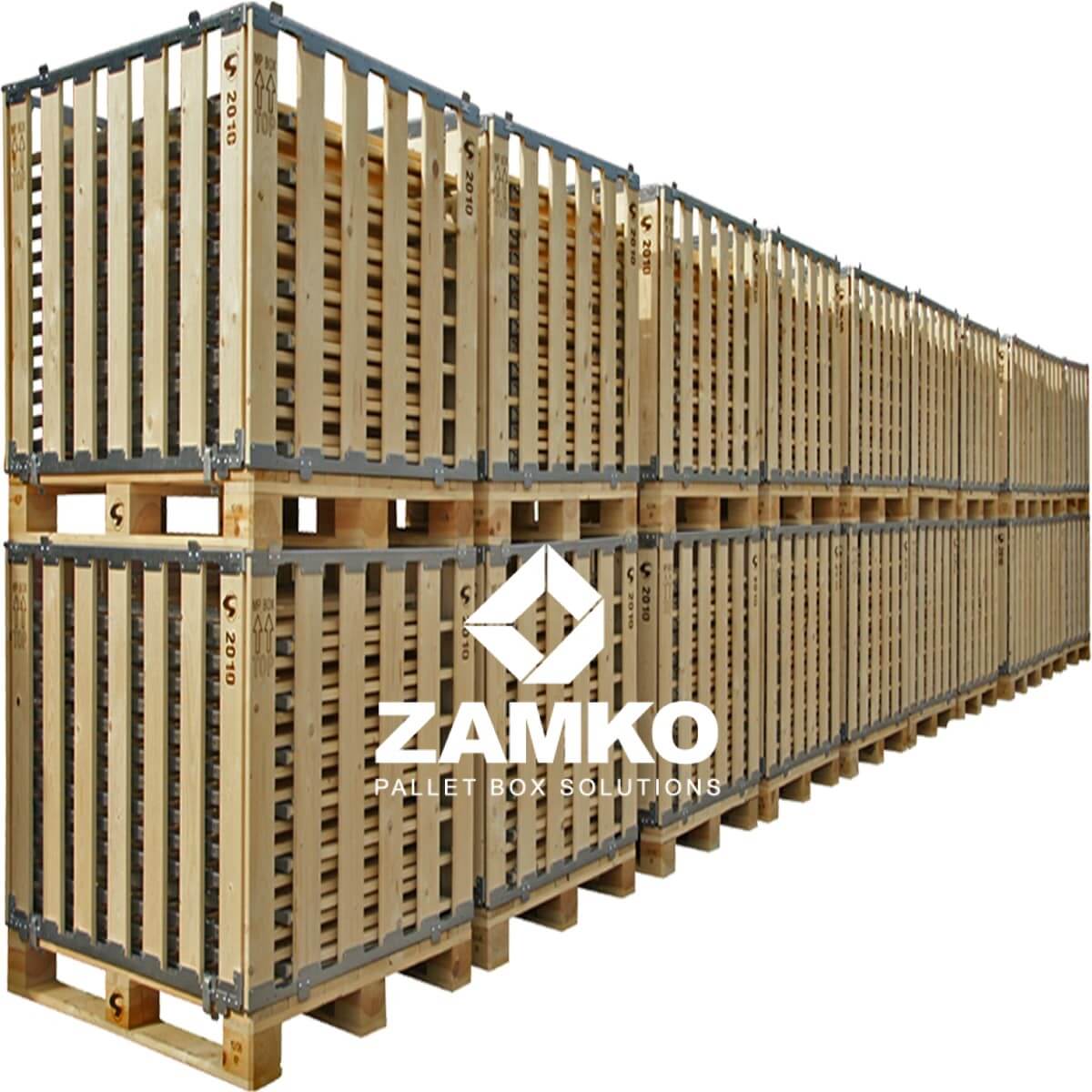

The most popular MPbox with hinged gate in pallet size 1000x1200mm. For return logistics: 16 boxes per pallet space. Storage: 40 boxes per pallet space.

Just send us an email at sales@zam.webfactor.com to receive our Brochure with the full range of MP Boxes.

MP Multibox as a shopdisplay

The MP Multibox is a pallet box with detachable walls which can be put from the truck directly into the shop, displaying products in an attractive way.

DIY

In DIY retail the MP Multibox is used for the displaying of boxed goods. Also bulk goods like bags of sand can be stacked inside, or blistered articles can be put as bulk goods inside.

Food retail

In food retail the MP Multibox is used as shop display for mainly bagged potatoes and onions, melons and fresh fruit.

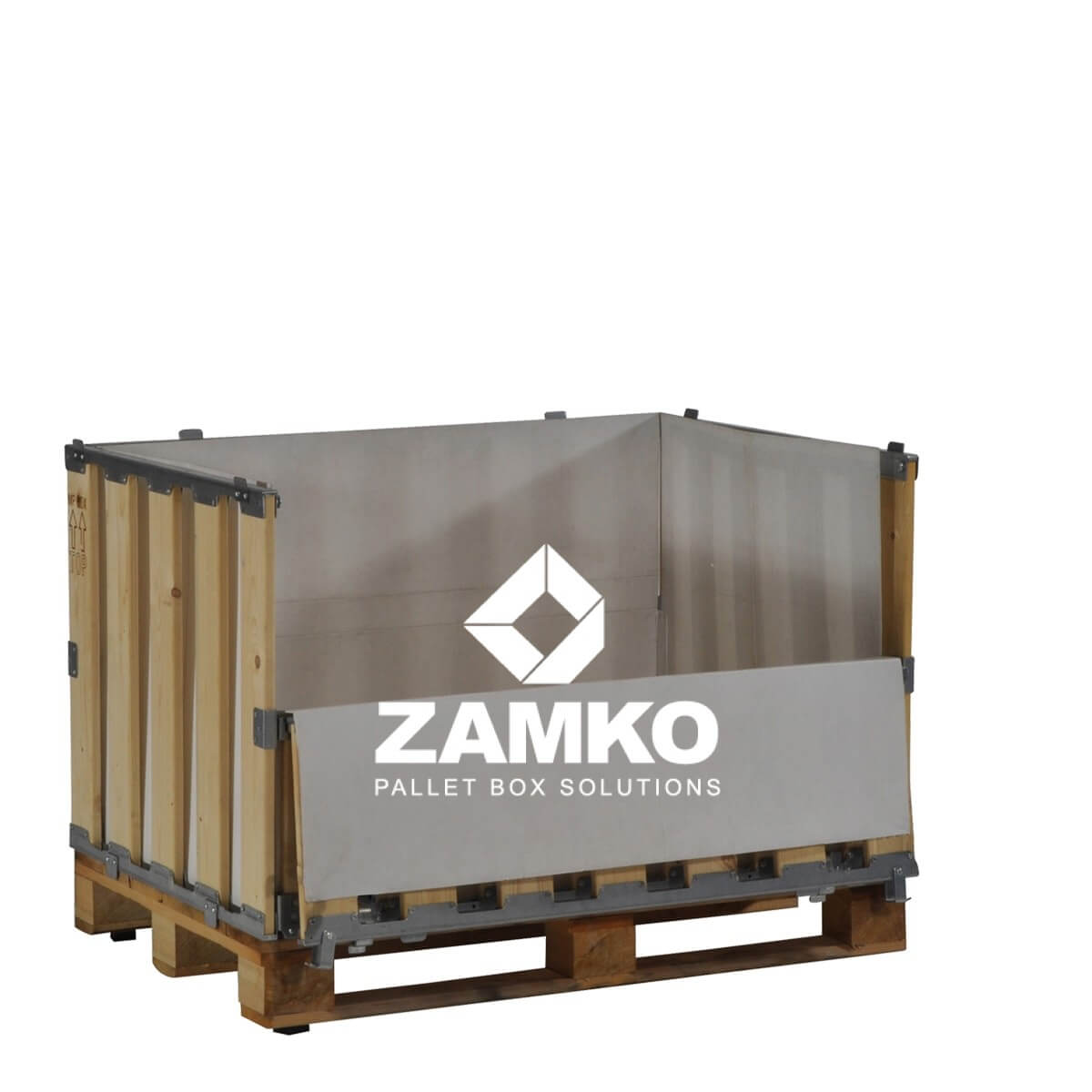

For this purpose we have a model with a shelve halfway taking the pressure of the bottom products. Together with a folding window, it proves convenient to use for shop employees as well as for customers

Non food retail

Also for large non food retail companies the MP Multibox has proven to be an distinguishing shop display. Dimensions and functionality of the MP Multibox  can be tailor made to your requirements.

Quality

The MP Multibox has a very sturdy build and can withstand many (>500) logistic movements over a long lifespan (>15 years).

Technical Specifications

Ground-size 1000x1200
External dimension 1000x1200xH800
Interior-dimension 950x1150xH800
Height when folded (mm) 125
Interior volume (m3) -
Weight (kg) 36
Loading Capacity STATIC 5000
Loading Capacity DYNAMISCH (kg) 1000
Stacking (Static) 1+4
Minimum Order Quantity (MOQ) 32
Condition New
Wall thickness (mm) 25
Folding window Yes
Mouse Tight No
Lid Optional
Length 1200
Width 1000
External height 800
Inside Height (cm) 800
Weight in ex pallet excl. pallet
Wall type Ventilated
Product consists of 4 walls
UN Certified No

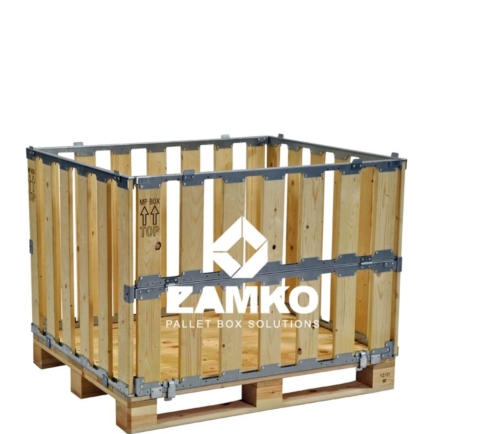

Pallet Box -4 detachable walls incl. 1 hinged gate - Zamko B.V.

Pallet Box -4 detachable walls incl. 1 hinged gate

SKU: MPB.b80.F

Select Your Quantity:

Quick Request Add to Quote Request Added

Rather place your request over the phone?

Leave us your details and we’ll call you back!

  • This field is for validation purposes and should be left unchanged.
Call Us Now: +31 40 711 47 17

Quality of Products and Services

Delivery throughout Europe

Reliability Commit to what we Promise

FRIENDLY & DEDICATED Customer Services

More from Holz Palettenboxen

 - Wooden Crates 800x2400mm – Clip Box - Zamko B.V.
new

Wooden Crates 800x2400mm - Clip Box

SKU: HCN.f80 800x2400xH1000 Stackable: 1+3 Capacity (kg): 1000
View Details Quick Request
 - Wooden Crates 800x1200mm – Clip Box - Zamko B.V.
new

Wooden Crates 800x1200mm - Clip Box

SKU: HCN.e80 800x1200xH1000 Stackable: 1+3 Capacity (kg): 1000
View Details Quick Request
 - Wooden Crates 1000x1200mm – Clip box - Zamko B.V.
new

Wooden Crates 1000x1200mm - Clip box

SKU: HCN.b80 1000x1200xH1000 Stackable: 1+3 Capacity (kg): 1000
View Details Quick Request
Pallet box, 4 walls, 800mm high
Second hand

Pallet box, 4 walls, 800mm high

SKU: MPG.b80 1000x1200xH800 Stackable: 1+4 Capacity (kg): 1000
View Details Quick Request
 - Pallet box, 4 walls, 400mm high - Zamko B.V.
Second hand

Pallet box, 4 walls, 400mm high

SKU: MPG.b40 1000x1200xH400 Stackable: 1+4 Capacity (kg): 1000
View Details Quick Request
 - Pallet Box -4 detachable walls incl. 1 hinged gate. Wide planks - Zamko B.V.
new

Pallet Box -4 detachable walls incl. 1 hinged gate. Wide planks

SKU: MPB.e70.PF 800x1200xH700 Stackable: 1+4 Capacity (kg): 1000
View Details Quick Request

Last Viewed

You have not viewed any products yet.

BE THE FIRST TO KNOW

Get all the latest information on Events, Sales and Offers. Sign up for newsletter today.

We will only use your email address to provide updates on our latest news, and won't flood your inbox with mail.

Office:

Luchthavenweg 81-232A5657 EA Eindhoven NL

Contact us

+31 40 711 47 17 info@zam.webfactor.com

Pallet Box -4 detachable walls incl. 1 hinged gate

Houten Palletboxen SKU: MPB.b80.F 1000x1200xH800 mm In Stock Stackable
Ground size (mm): 1000x1200
External dimension (mm): 1000x1200xH800
Interior dimensions (mm): 950x1150xH800
Interior volume (m3): -
Height when folded (mm): 125
Weight (kg): 36
Wall thickness (mm): 25
Load capacity (kg): 1000
Stacking (Static) 1+4
qr-code

Description

The most popular MPbox with hinged gate in pallet size 1000x1200mm. For return logistics: 16 boxes per pallet space. Storage: 40 boxes per pallet space.

Features

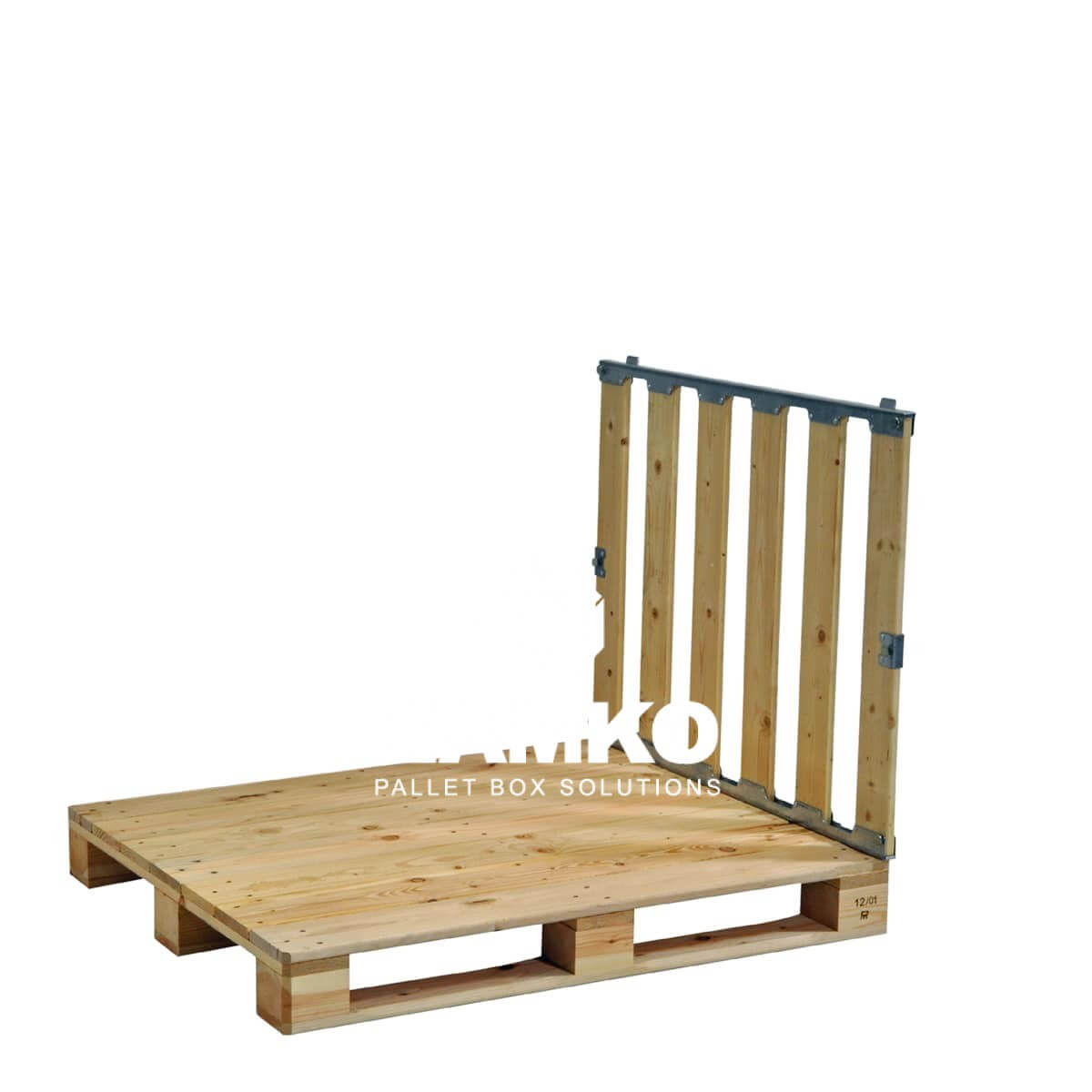

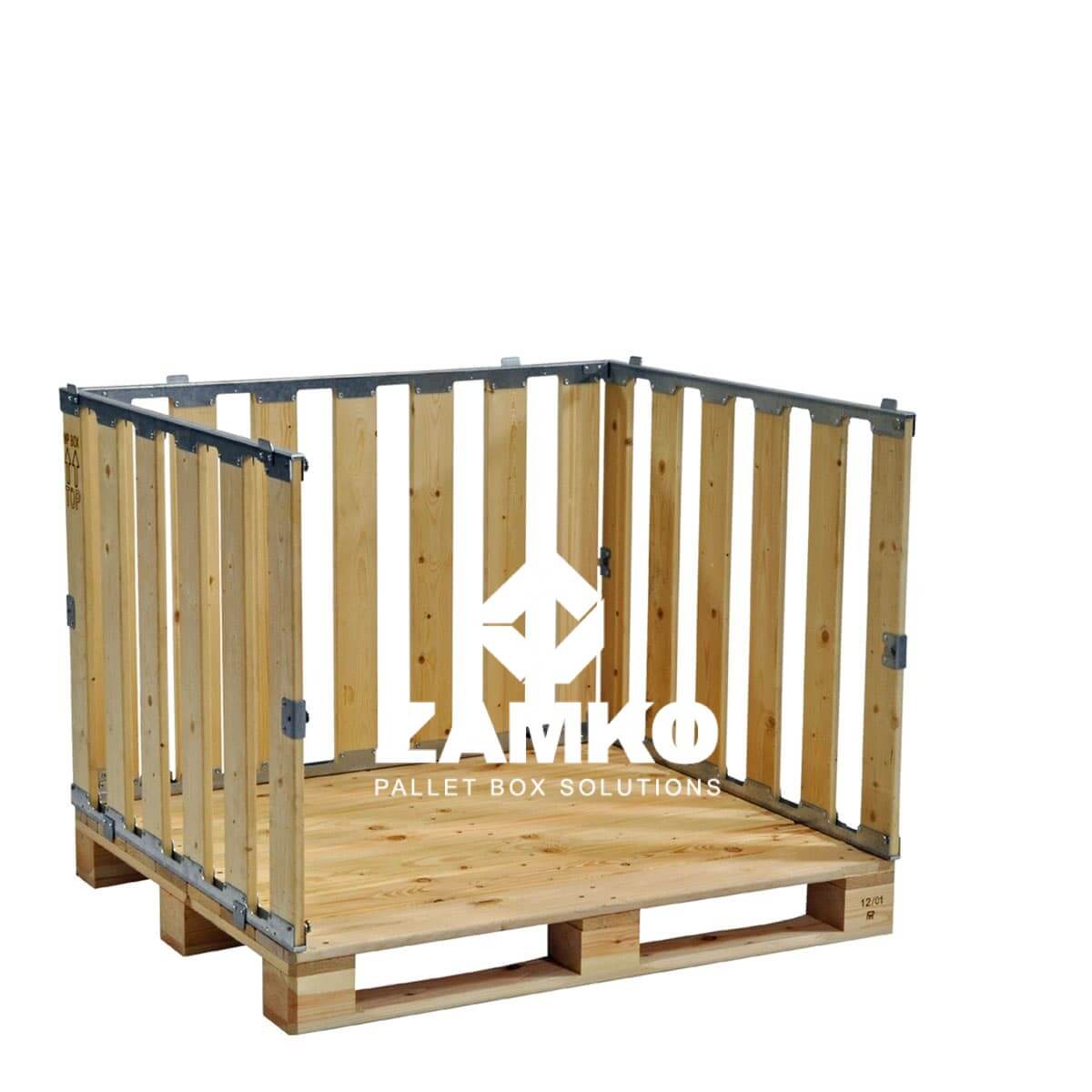

The Pallet Box consists of four detachable walls that can be easily removed or assembled, providing flexibility in adjusting the container's height and accommodating various load sizes. Convenient access to the contents without the need to remove the entire wall.

  • Modular Design

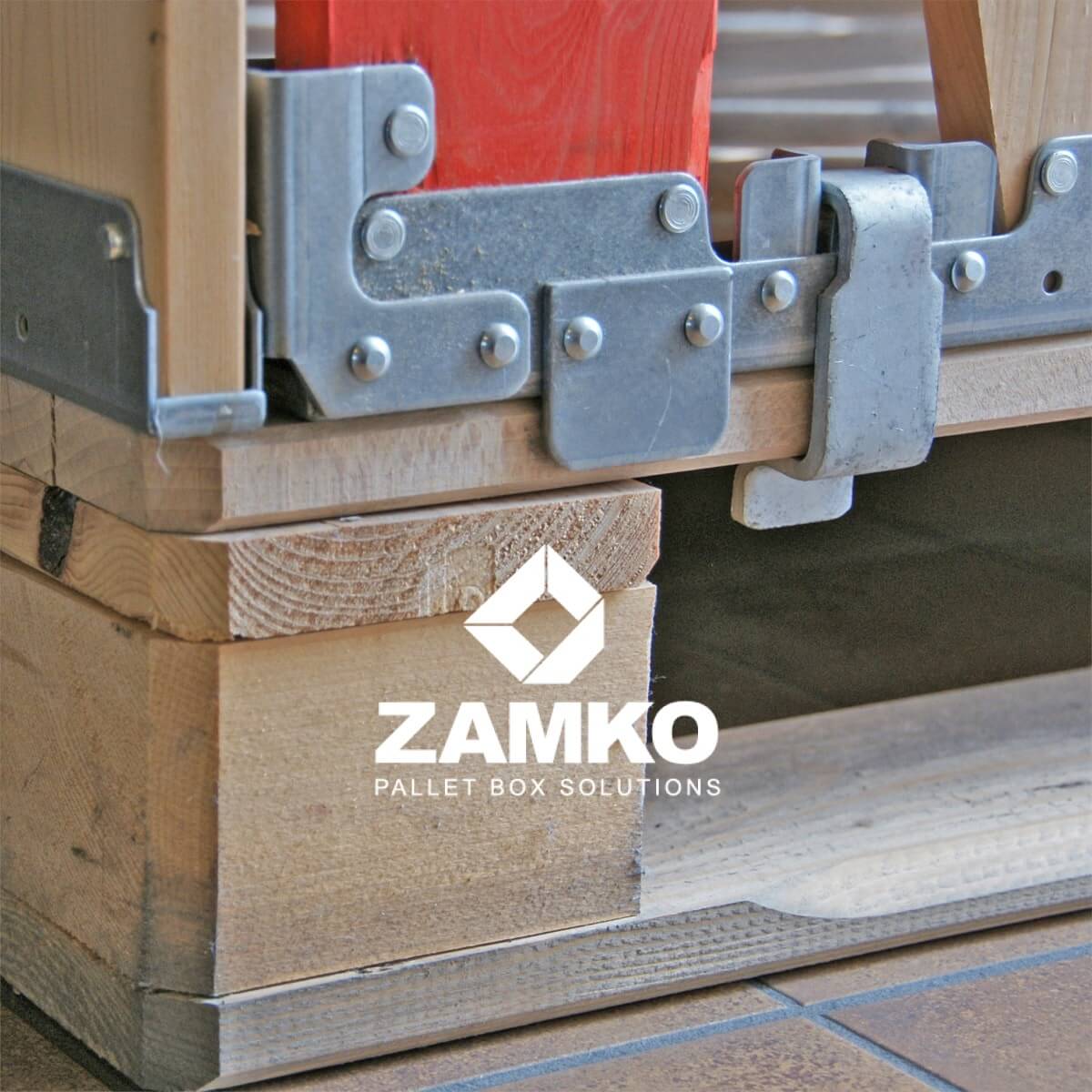

  • Hinged Gate
  • Sturdy Construction

Benefits

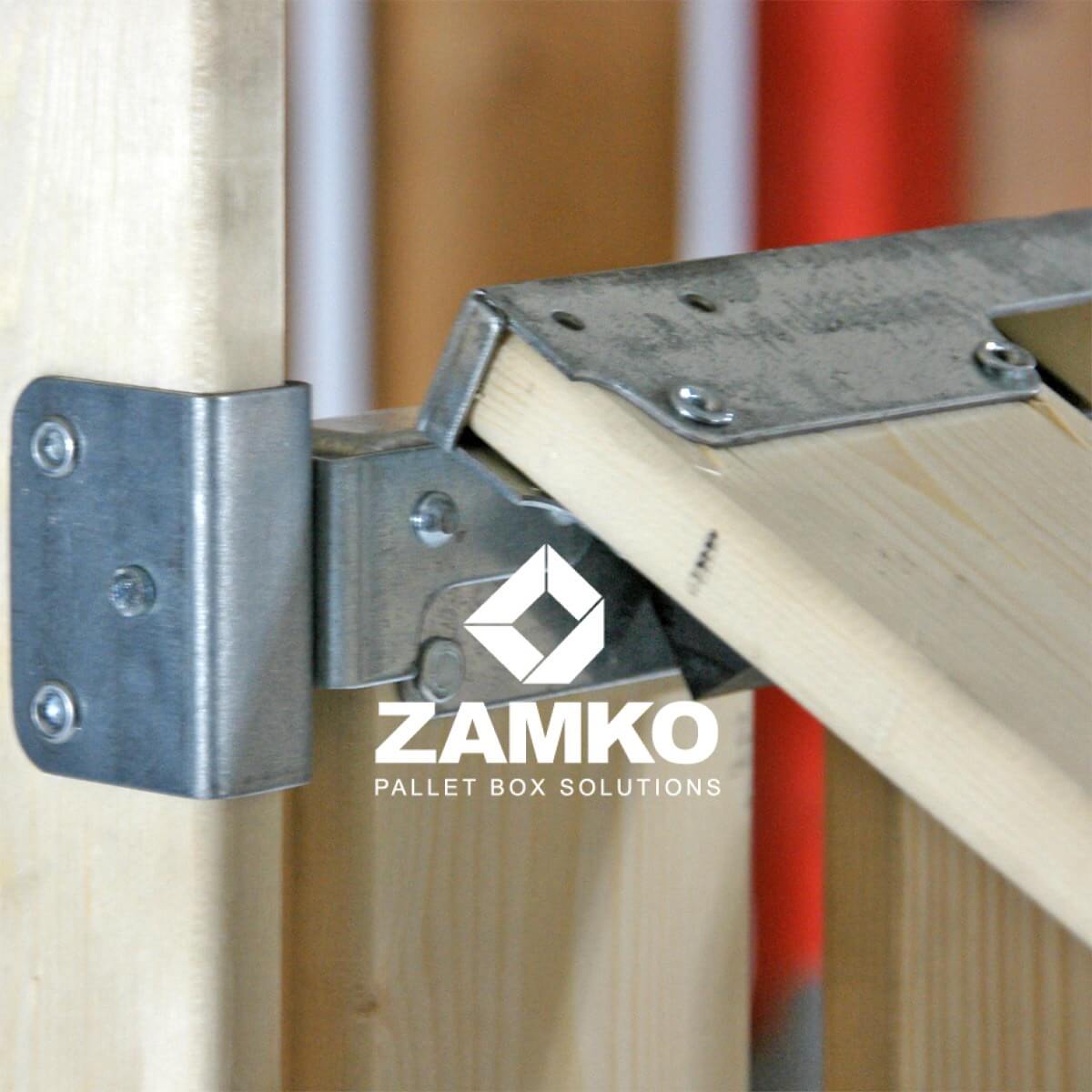

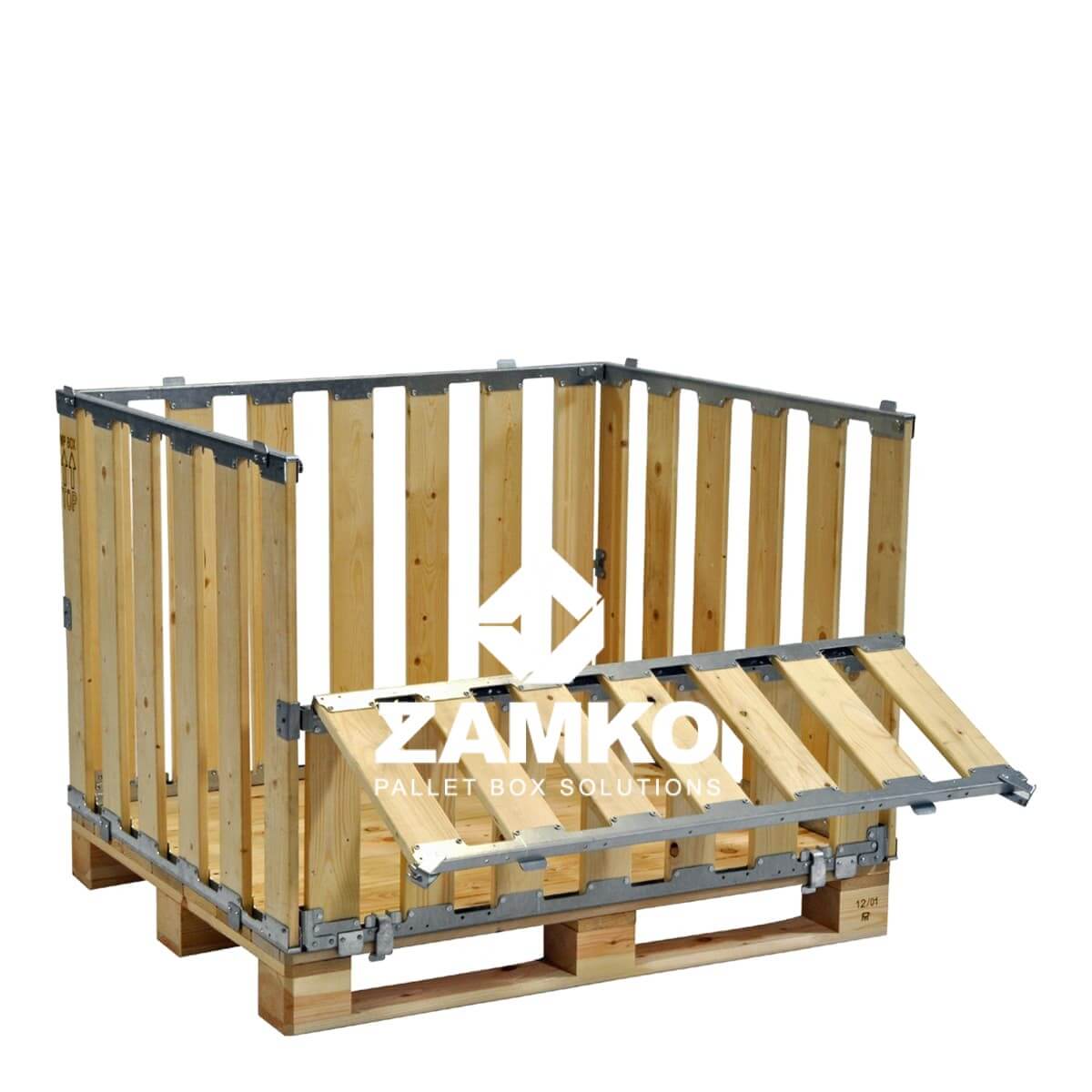

The hinged gate provides easy access to the contents without the need to remove the entire wall, saving time and effort during loading and unloading. The ability to detach walls allows for customization of the pallet box's height to match the specific requirements of different loads.

  • High load capacity
  • Stackable
  • Large volume
  • Folding when empty
  • Ventilating walls
  • Convenient Loading and Unloading
Page 1 of 2

Copyright © 2026 Zam.webfactor.com. All rights reserved.

Website Design & SEO by

Office:

Luchthavenweg 81-232A5657 EA Eindhoven NL

Contact us

+31 40 711 47 17 info@zam.webfactor.com

Pallet Box -4 detachable walls incl. 1 hinged gate

Technical Specificatins

Get to know the technical specifications of wooden pallet boxes. Here you will find detailed information about their dimensions, volume, maximum load capacity, etc.

Dimensions (mm):

Box 1 1200Length mm
Box 2 1000Width mm
Box 3 800Height mm
Box 4 - lVolume
External: 1000x1200xH800 Folded and Stacked: 125 (9 units) Internal: 950x1150xH800 Erected and Stacked: 2039 (2 units) Folded: 800 x 1200 x 330 Shelf: 730 x 1130 x 35

Load capacity (kg):

Pallet box 1000 kg Pallet box 2 1000 kg
Pallet box 3 1000 kg Pallet box 4 1000 kg
Pallet box 5 1000 kg Pallet box 6 1000 kg Pallet box 7 1000 kg
Max. load distribution for stacking configurations (kg) Dynamic stacking 1000 kg (2 on 1) Static stacking 5000 kg (3 on 1)
Pallet box 7 1000 kg Max. load capacity (Racking RAL* )
Pallet box 8 1000 kg Max. load capacity (Dynamic** )
Pallet box 9 5000 kg Max. load capacity (Static)
Pallet box 10 1000 kg Max. load capacity (1000 kg )
Pallet box 11 1000 kg Max. load capacity (1000 kg )
40 kg Average unit weight (empty) Unit: 40 kg Shelf: 7.2 kg

* RAL: Racking across the lenght of the pallet base with adequate on the outer blocks of the three pallet skids

** Dynamic stacking 1000 kg for two units of max 36 kg kg load each

Page 2 of 2
