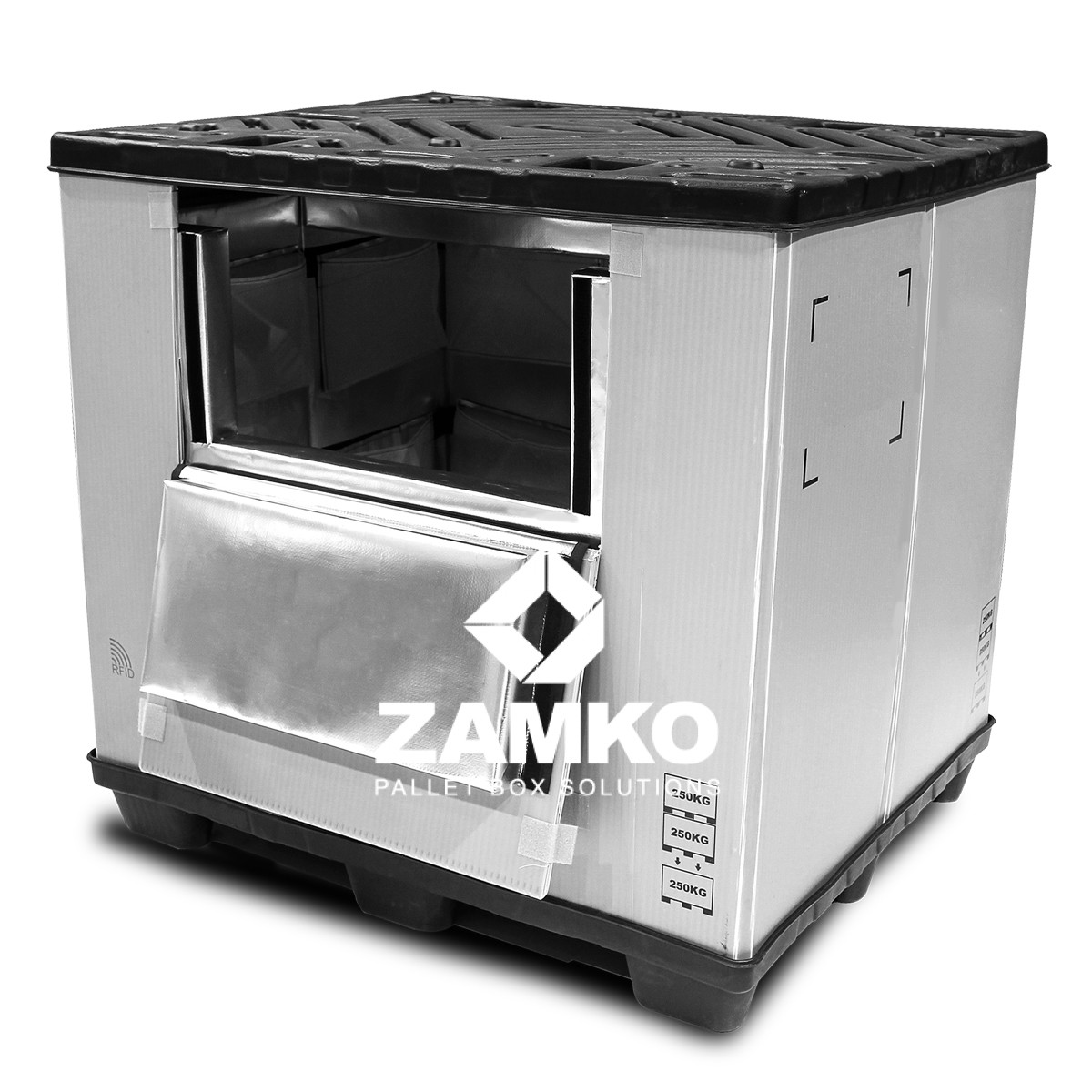

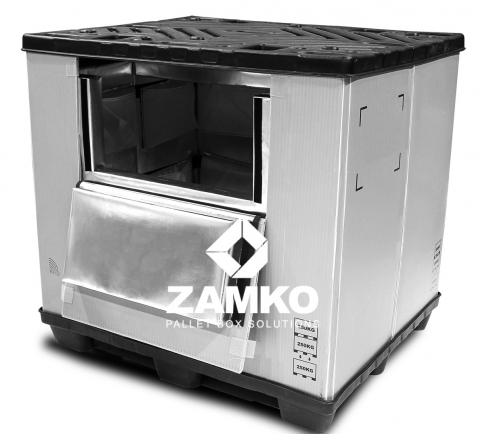

Reusable cold chain pallet box. This sleeve pack has a pallet dimension of 1000x1200mm but can be provided standard in the following pallet dimensions and a height of your choice:
OUTSIDE (mm) INSIDE (mm)
1200 × 800 1090 x 690
1200 × 1000 1085 x 885
1140 × 790 1025 x 675
1140 × 980 1025 x 865
1220 × 1140 1110 x 1030
1300 × 1140 1185 x 1025
1470 × 1140 1355 x 1025
1550 x 1140* 1445 x 1115
1600 × 1140 1495 x 1015
* fitting a quarter of a PMC-plate (for air cargo).
CONSTRUCTION
WALLS 10mm thick, 3.000gr/m2 density high impact Polypropylene
cell structured laminated plate material
WALL ISOLATION VIP-panels (Vacuum insulated panels) with fused silica
RIMS all rims are closed for hygiene and easy cleaning

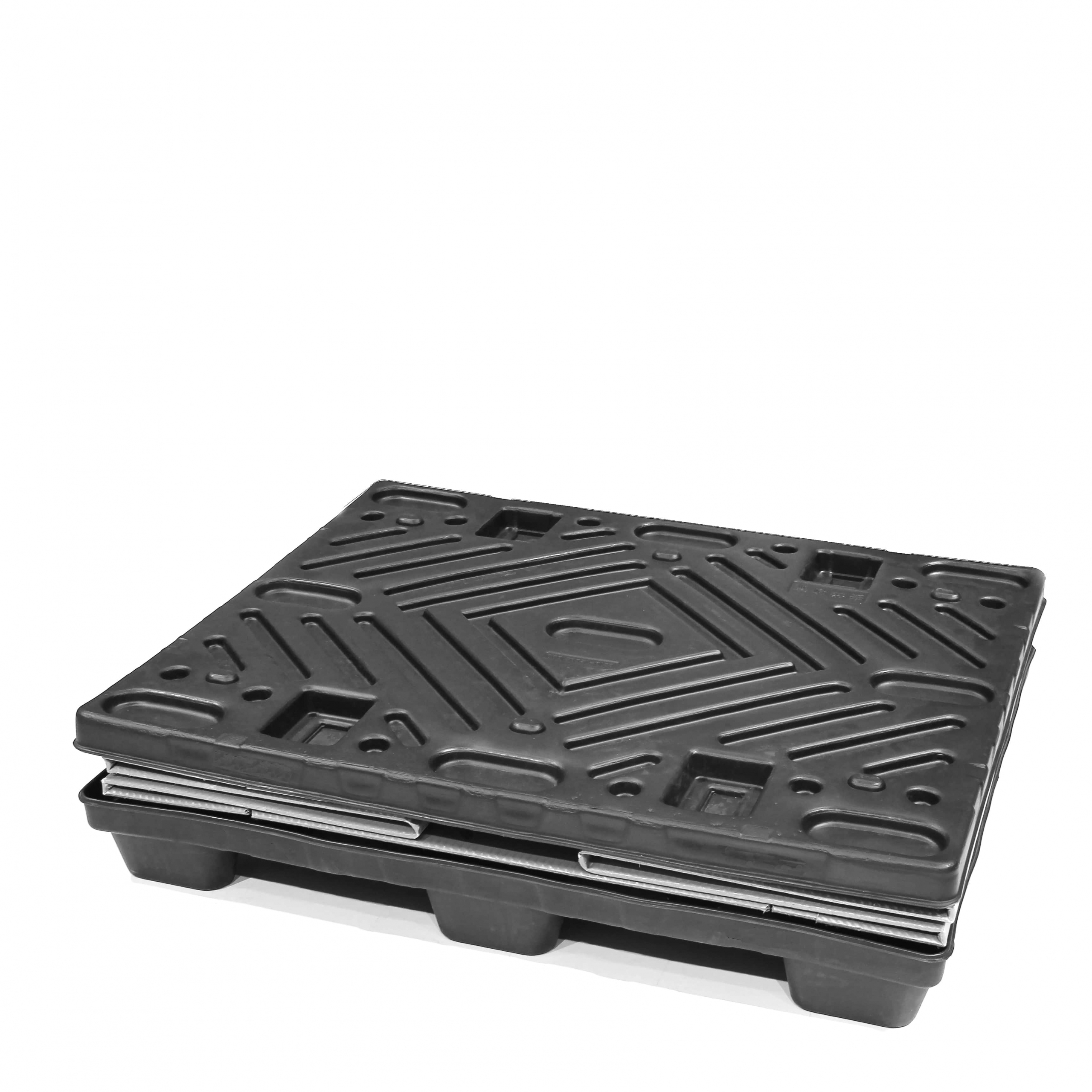

PALLET & LID Hdpe Twin sheet injection molding
BUILD The sleeve is put deep inside the pallet rims, after which
products can be loaded. The lid is put on top of the walls,
to close the container and make it stackable. Optionally
the walls can be secured to the pallet & lid with
a locking system.
AVAILABLE OPTIONS
– locking system on lid and pallet
– heavier walls
– silk printing the sleeve in 1 or 2 colours
– barcode printing
– label holder
– custom colour
– custom dimensions
PASSIVE TEMPERATURE CONTROL
For cooling down even to -20 degrees (Celcius) for over 72 hours, no dry ice is required.
This saves space, weight, load capacity. It also avoids the air cargo surcharge for the transport of hazardous materials
INSULATION
The walls of the pallet container are insulated with 25mm Fused silica VIP panels (vacuum insulated panels). Next to this, reusable PCM plates (phase-changing material) are used to get the required cooling/freezing temperature, depending on your product.
This results in high isolation values, keeping the products at a cold or frozen temperature for 72 hours and longer.
ELECTRONIC MONITORING
With an electronic device in each container, the temperature during transit is monitored to give your customer assurance about the correct temperature during transit.
QUALITY
The design of ZAMKO’S cold chain pallet containers has been carefully thought out, with attention to the needs of customers. Only high-quality materials are used. More than 500.000 of these pallet containers have already been used and tested over the past years.
Due to the strong 10mm laminated cellular walls, your goods get optimal side-impact protection. The quality of your product arriving at customers’ destination is assured.
POOLING
By using ZAMKO’s pooling solution, our customers get to use high-quality reusable cold-chain containers with high-quality isolation value. And paying less money than for one-way packaging.
The process of taking back, HACCP cleaning, and repairing the containers we fully take out of your hands. The necessary packaging containers are delivered at customers’ location in time, in order to package and ship the goods.
